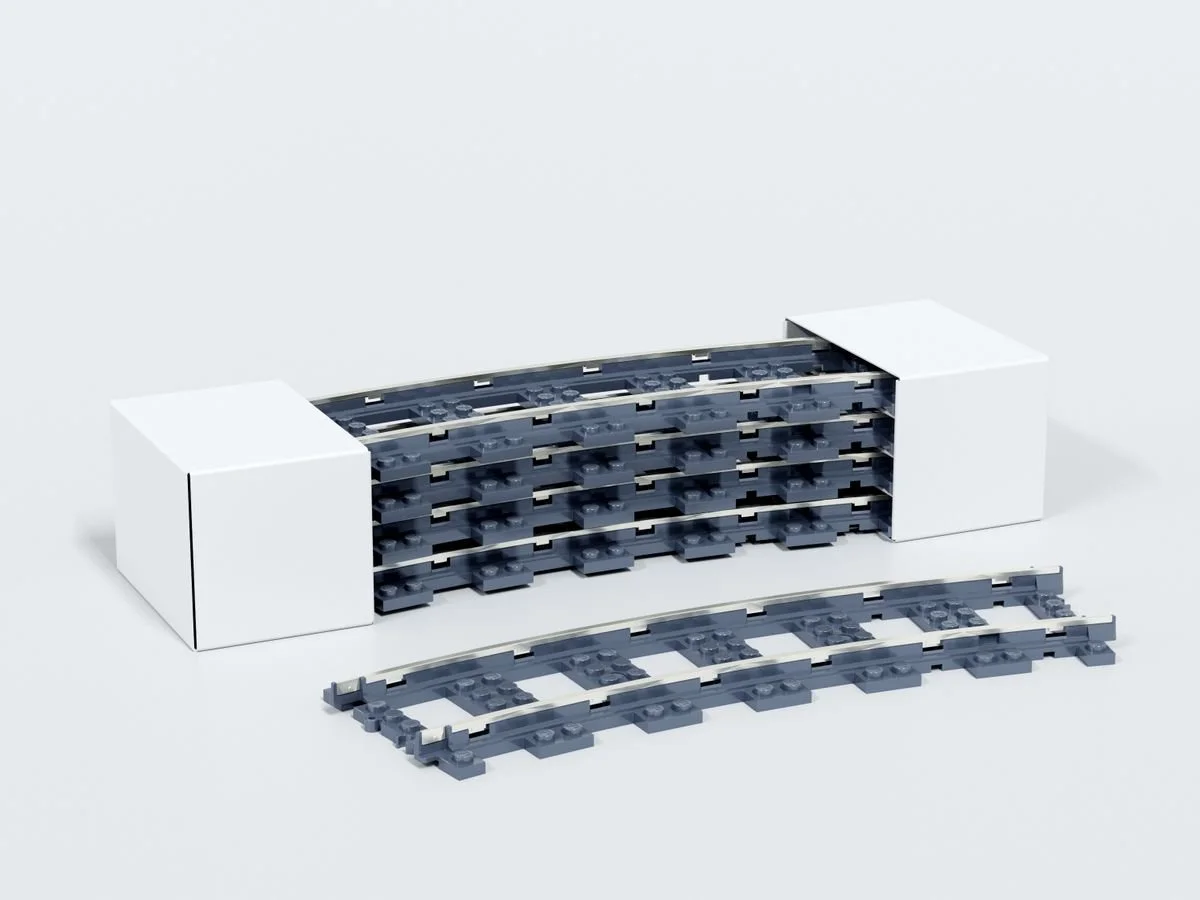

Each box of R64P Curve Track (8864) contains 8x tracks individually stacked with special cardboard separators. The 8864 product packaging is made from 100% recyclable paper-based materials from responsibly managed sustainable sources (FSC certified).

The R64P is a special curve element designed for use with the P40 Switch or for making S-bend curves which can align within a nominal 8-stud grid.  The R64P is not suitable for making 90˚, 180˚ or complete circle configurations.  This is because the R64P occupies a 22.62˚ sector angle rather than 22.5˚; for example, 16x R64P would make 362˚ rather than 360˚.  The versatility of the R64P when used in conjunction with Fx Track special straights S1.6 and S3.2 allow you to make parallel sidings and S-bends at any multiple of 8-studs and still maintain grid alignment with the LEGO grid system.

SPECIFICATIONS

64 studs (512 mm) radius / 128 studs (1024 mm) diameter
22.62˚ sector angle (special match for P40 Switch)
3 plates (9.6 mm) tall
37.5 mm track gauge / 40 mm centre-line gauge
UV protected injection molded ABS plastic in dark bluish gray colour
corrosion resistant Nickel plated Copper-Beryllium alloy metal rails
suitable for indoor and outdoor use
power feeder location with two wire pass-through channels
compatible with LEGO® brand 9V and RC track elements
